| SCANNERS |

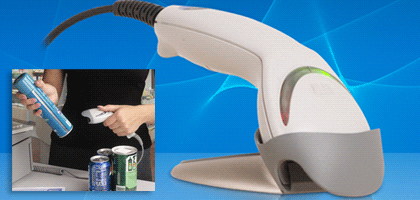

| Model : ' Metrologic ' make ' MS 5145' |
| OPERATIONAL |
| Type |
: |
Laser |
| Light Source |
: |
Visible Laser Diode 650 nm + 10 nm |
| |
|
|
| Laser Power |
: |
< 1.0 mW @ peak power |
| |
|
|
| Depth of Scan Field |
: |
0 mm - 140 mm (0” - 5.5”) for 0.33 mm (13 mil) bar codes |
| Width of Scan Field |
: |
49 mm (1.9”) @ face; 195 mm (7.7”) @ 140 mm (5.5”) |
| Scan Speed |
: |
72 scan lines per second |
| Scan Pattern |
: |
Single scan line |
| Minimum Bar Width |
: |
0.102 mm (4.0 mil) |
| Decode Capability |
: |
Autodiscriminates all standard bar codes, including RSS;
for other symbologies call Metrologic |
| System Interfaces |
: |
PC Keyboard Wedge, RS232, IBM 468x/469x,
Stand Alone Keyboard, USB (low speed and full speed) |
| Print Contrast |
: |
35% minimum reflectance difference |
| Number Characters Read |
: |
Up to 80 data characters |
| Roll, Pitch, Yaw |
: |
42°, 68°, 52° |
| Beeper Operation |
: |
7 tones or no beep |
| Indicators (LED) |
: |
Green = laser on, ready to scan; Red = good read |
| MECHANICAL |
: |
Length 169 mm (6.7”), Width Head: 63 mm (2.5”)Handle: 40 mm (1.6”), Height Head: 35 mm (1.4”) Handle: 31 mm (1.2”),Weight(w/o cable)97 g (3.41 oz),Termination 10 pin modular RJ45,Cable Standard 1.5 m (5’) straight; optional 2.7 m (9’) coiled |
|
|
|
|
|
