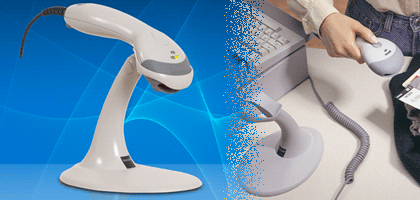

Model : 'Metrologic' make 'MS 9520'
OPERATIONAL
Type : Laser
Light Source
:
Visible Laser Diode 650 nm + 10 nm

Laser Power
:
0.96 mW (peak)
Depth of Scan Field (programmable)
:
0 mm - 203 mm (0” - 8”) for 0.33 mm (13 mil) bar codes
Width of Scan Field
:

64 mm (2.5”) @ face; 249 mm (9.8”) @ 203 mm (8.0”)

Scan Speed
:
72 + 2 scan lines per second
Scan Pattern
:
Single scan line
Minimum Bar Width
:
0.127 mm (5.0 mil)
Decode Capability
:
Autodiscriminates all standard bar codes, including RSS;
for other symbologies call Metrologic
System Interfaces
:
PC Keyboard Wedge, RS232, OCIA, Light Pen Emulation, Non-decode
Emulation, IBM 468X/469X, Stand Alone Keyboard, USB (low speed and
full speed
Print Contrast
: 35% minimum reflectance difference
Number Characters Read
:
Up to 80 data characters
Roll, Pitch, Yaw
:
42°, 68°, 52°
Beeper Operation
: 7 tones or no beep
Indicators (LED)
:
Green = laser on, ready to scan; Red = good read
MECHANICAL : Height 198 mm (7.8”), Depth 40 mm (1.6”) , Width Head: 45 mm (1.8”) Handle: 78 mm (3.1”), Weight149 g (5.25 oz),Termination 10 pin modular RJ45,Cable Standard 2.7 m (9’) straight; optional 2.1 m (7’) straight
