| BARCODE SCANNERS |

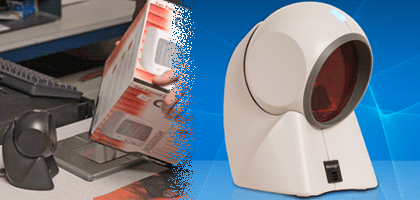

| Model : 'Metrologic' make 'MS 7120' |
| OPERATIONAL |
| Type |
: |
Laser |
Light Source |
: |
Visible Laser Diode 675 nm + 5 nm |
| |
|
|
Laser Power |
: |
0.681 mW (peak) |
Depth of Scan Field (programmable) |
: |
0 mm - 215 mm (0” - 8.5”) for 0.33 mm (13 mil) bar codes |
Width of Scan Field |
: |
60 mm (2.4”) @ face; 105 mm (4.1”) @ 216 mm (8.5”)
|
Scan Speed |
: |
1200 scan lines per second |
Scan Pattern |
: |
5 fields of 4 parallel lines (omnidirectional) |
| Number of Scan Lines |
: |
20 |
Minimum Bar Width |
: |
0.13 mm (5.2 mil) |
Decode Capability |
: |
Autodiscriminates all standard bar codes,
for other symbologies call Metrologic |
System Interfaces |
: |
PC Keyboard Wedge, RS232, OCIA, Light Pen, IBM 46XX, Stand Alone Keyboard, |
Print Contrast |
: |
35% minimum reflectance difference |
Number Characters Read |
: |
Up to 80 data characters |
Roll, Pitch, Yaw |
: |
360°, 60 °, 60 ° |
Beeper Operation |
: |
7 tones or no beep |
Indicators (LED) |
: |
Red = laser on, ready to scan
Green = good read |
| MECHANICAL |
: |
Height 150 mm (5.9”), Depth 105 mm (4.1”) , Width-Orb 80 mm (3.1”), Width-Base 102 mm (4.0”), Weight 380 grams (13.4 oz) ,Termination 10 pin modular RJ45,Cable Standard 2.1 m (7’) straight; optional 2.1 m (9’) coiled; for other cables call Metrologic, Tilt - Orb 30° vertical |
|
|
|
|
|
